Amtek Modular Jacks and Plugs

Quick Overview

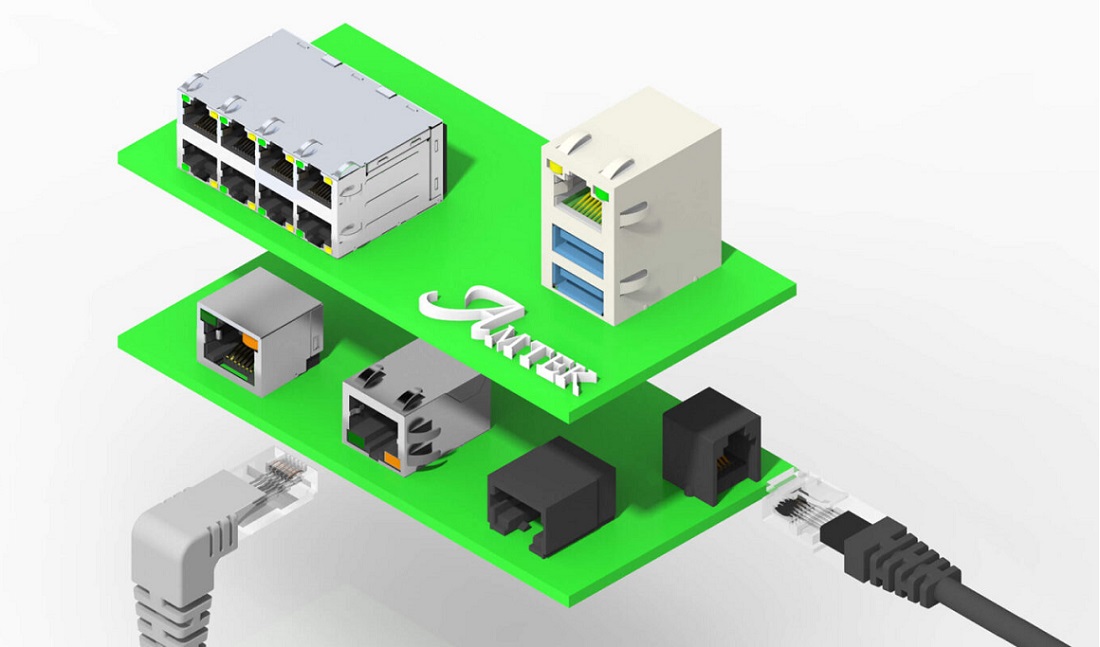

Amtek’s extensive range of Modular Jacks and Plugs deliver exceptional performance across various applications, including data and high-speed networking, consumer electronics, medical devices, and industrial uses. This includes Integrated Magnetic Jacks supporting PoE and Modular Jacks supporting Cat3, Cat5, and 10G standards.

Details

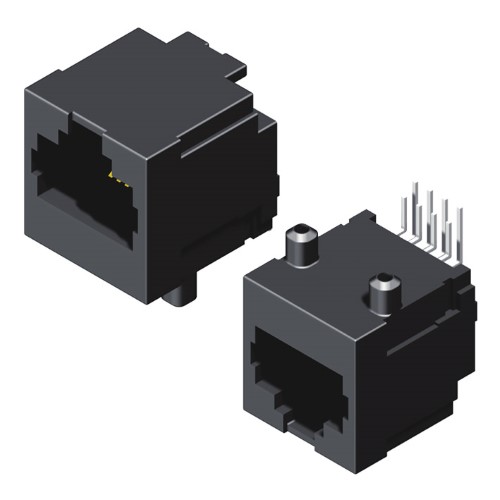

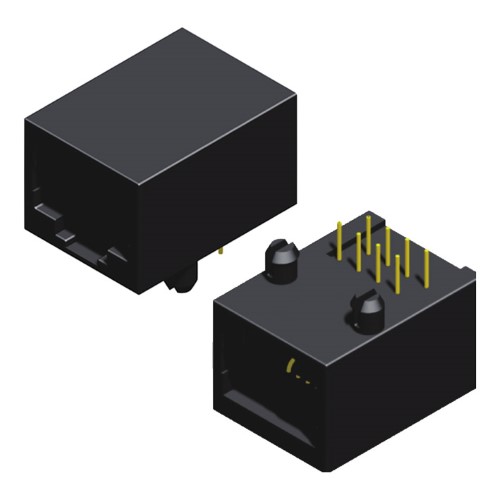

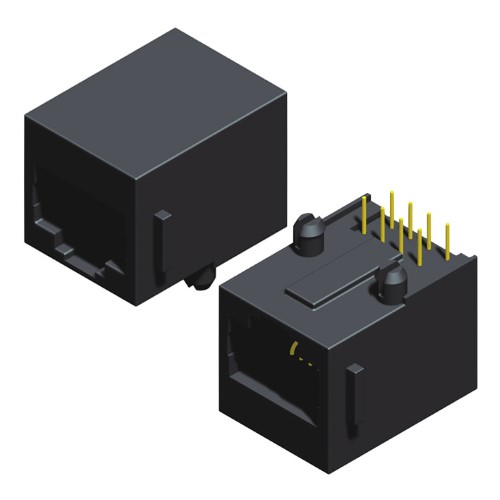

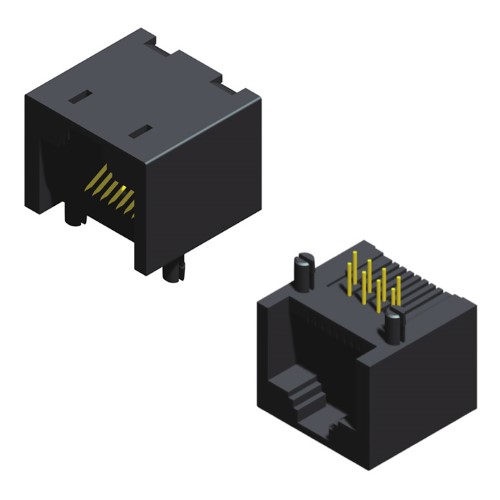

Amtek’s Modular Jacks feature single and multi-port solutions widely utilized in Telecom, Data, Networking, and Home Entertainment markets. These products boast a simple, flexible, and low-profile design, ideal for LAN applications, particularly Network Interface Cards. The Cat 3 Modular Jacks support 16Mbps signal transmission for devices such as phones, modems, and POS terminals, while the Cat 5 Modular Jacks support 100Mbps signals for switches, routers, and hubs. Amtek offers a comprehensive range of modular, copper RJ45 jacks engineered for superior mechanical and signal connectivity performance. These jacks are easy to deploy, available in various colors, and compatible with both round and flat-oval cables.

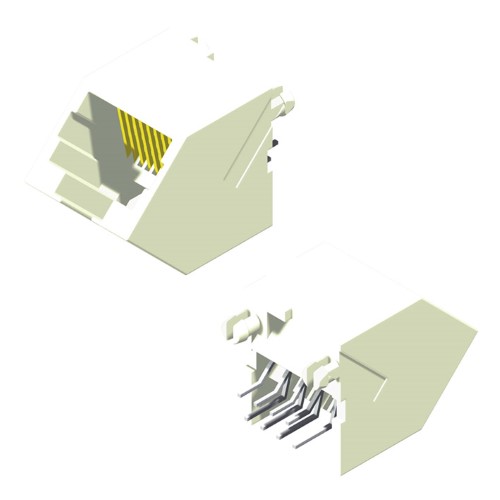

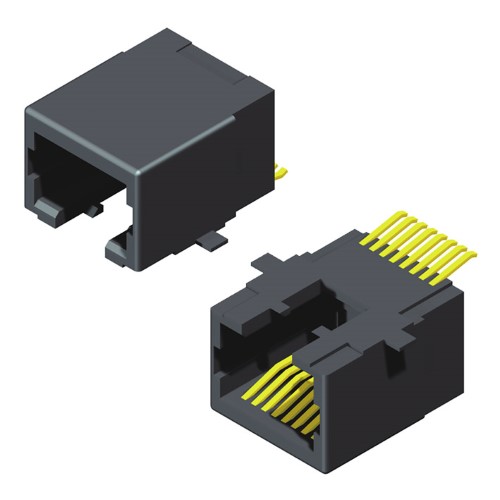

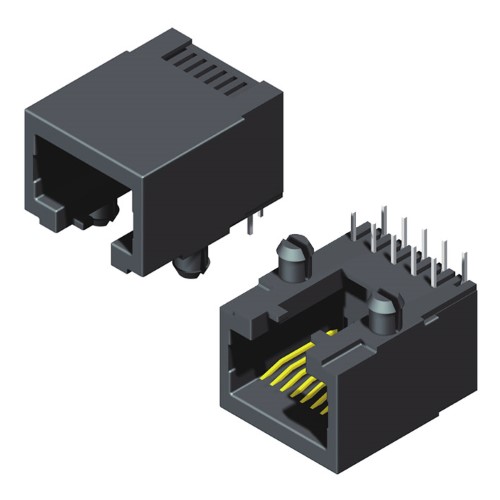

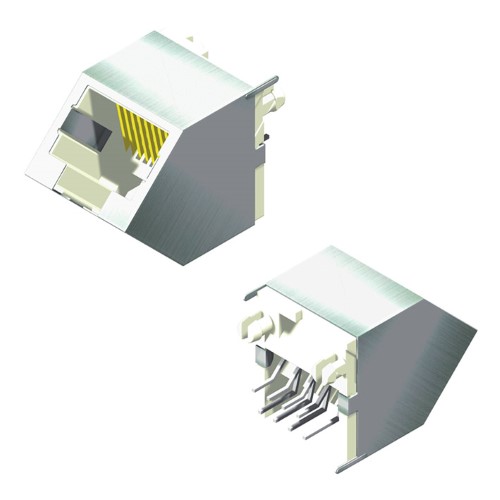

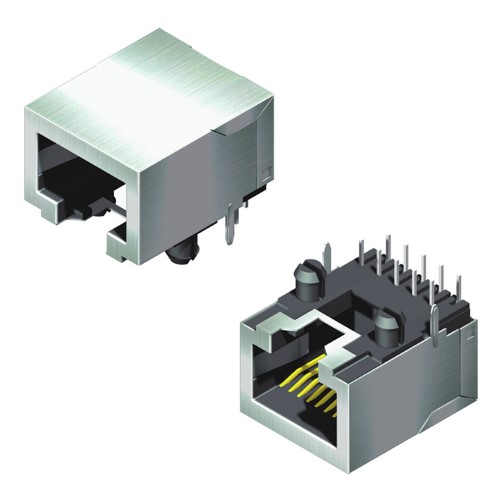

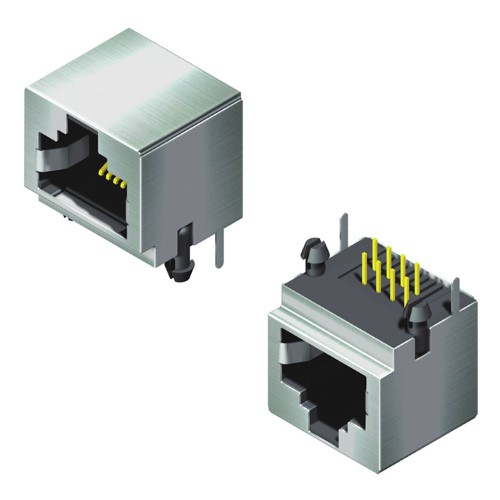

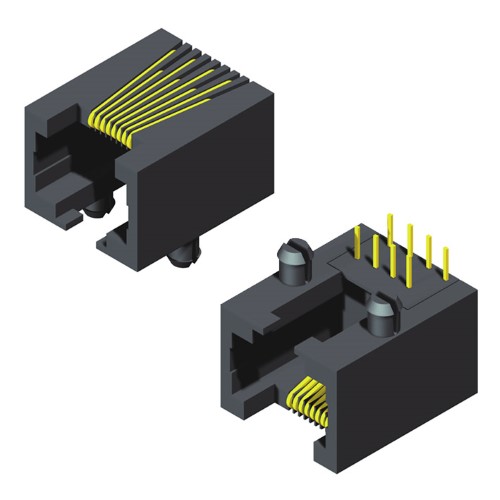

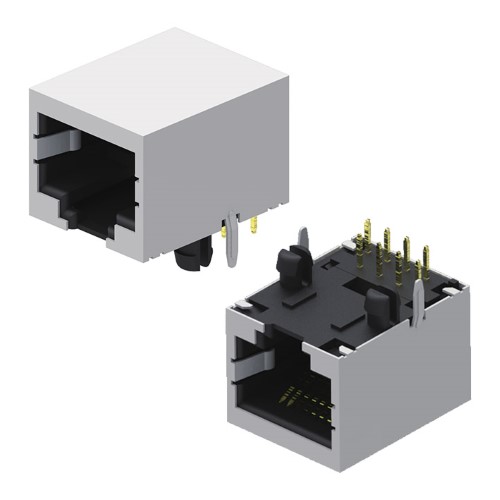

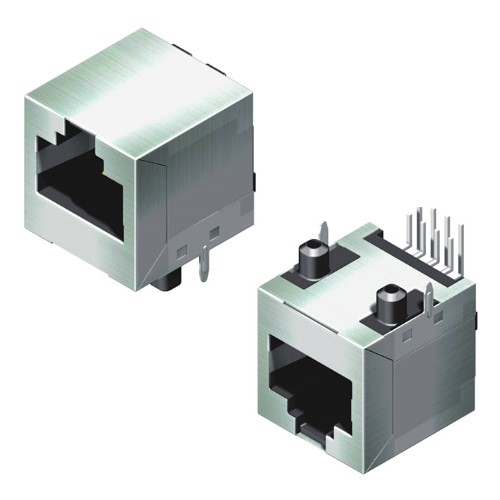

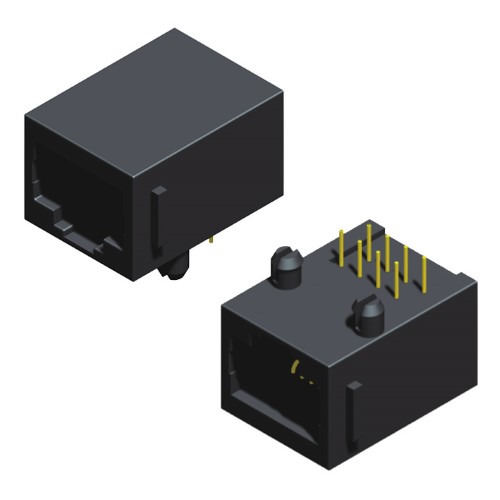

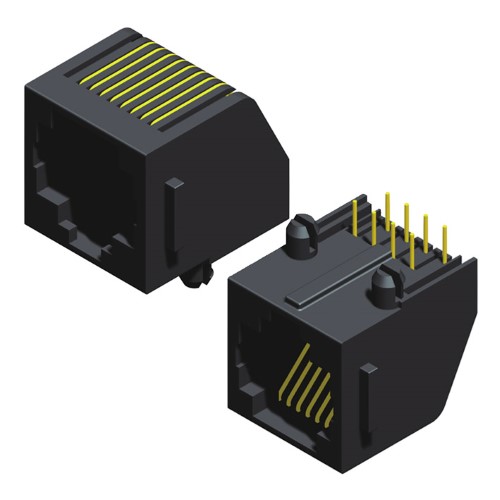

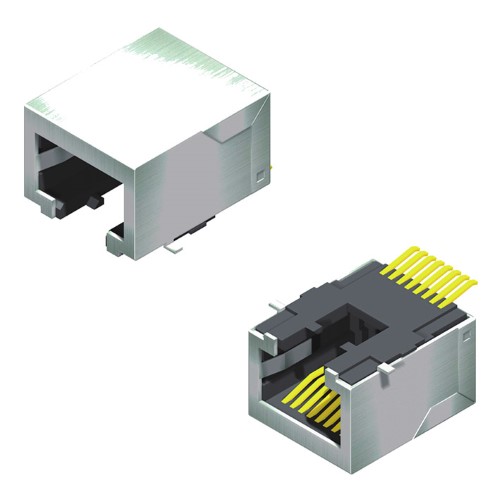

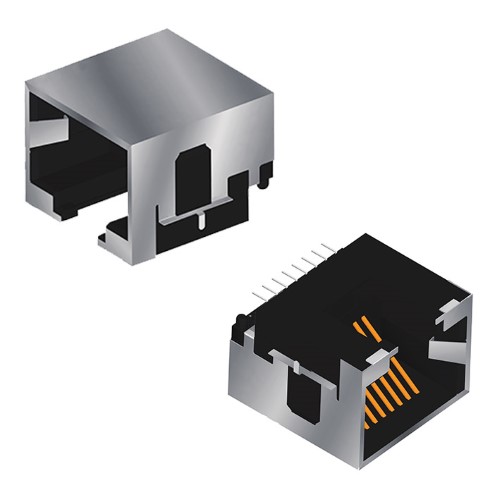

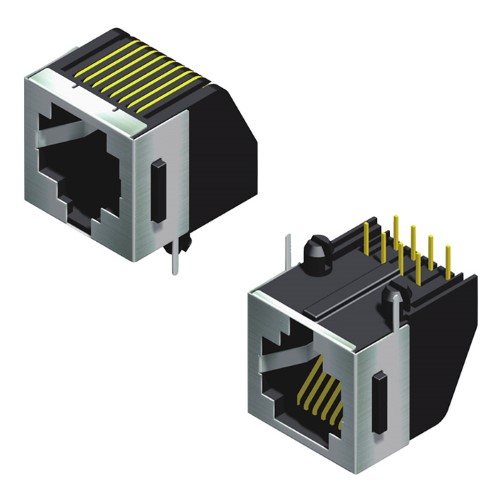

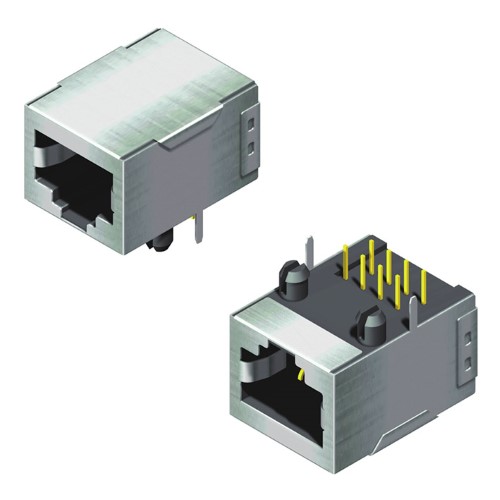

Designed for secure and reliable input/output connections, many of Amtek’s modular jacks and plugs feature a unique locking system that prevents mis-mating and accidental unplugging due to shock and vibration. Amtek’s shielded and unshielded RJ connectors are compact, one-piece constructions with preloaded contacts, providing space-saving, quick-to-install solutions that enhance design flexibility. These connectors are used in various applications, including data communications, consumer devices, and industrial systems.

The standard RJ45 Modular Jack Connector is available in multiple configurations of positions and contacts: 8P8C, 10P8C, and 10P10C. Gold plating thickness options include Fµ (Gold flash), 1µ”, 3µ”, 6µ”, 15µ”, 30µ”, and 50µ”, with Fµ being standard. For specific gold plating requirements, please contact us for more details.

Key Specifications:

Housing Material: PBT, PA66, PA46, high-temperature nylon UL94V-0
Colors: Black, Grey; Custom colors available
Contact Material: Phosphor Bronze 0.46mm Round Pin
Shielding Material: 0.20mm thickness copper alloy, nickel-plated

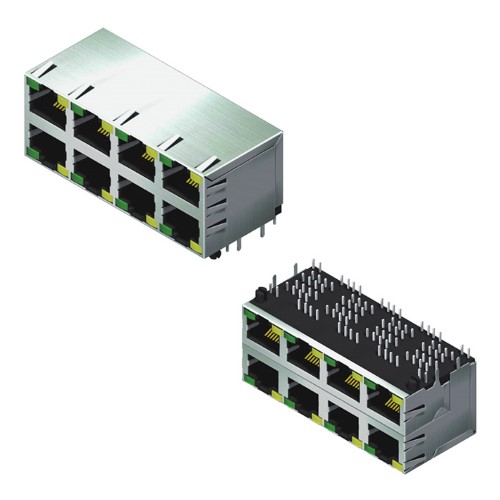

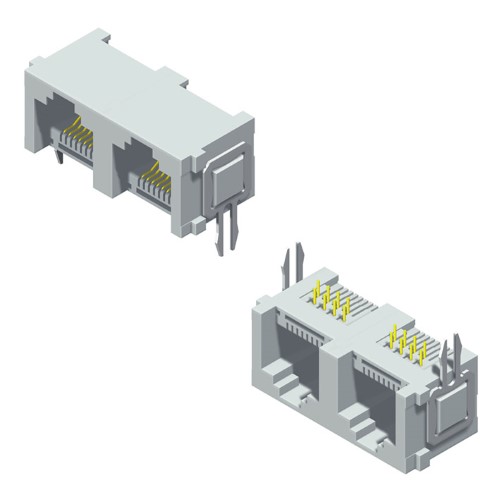

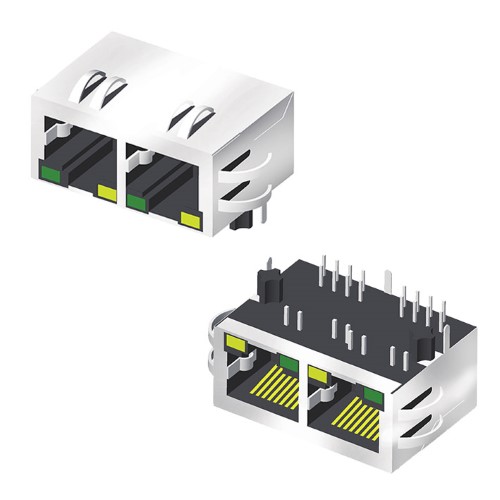

Multi-port (ganged) jacks range from 1×2, 1×4, 1×5, 1×6, 1×8, and more. Stacked RJ45 Jacks feature dual rows, offering various port configurations such as 2×1, 2×2, 2×4, 2×6, and 2×8. This integrated structure saves space in compact devices, making them ideal for routers and switches.

Technical Options for RJ45 Modular Jacks:

Mounting Orientations:

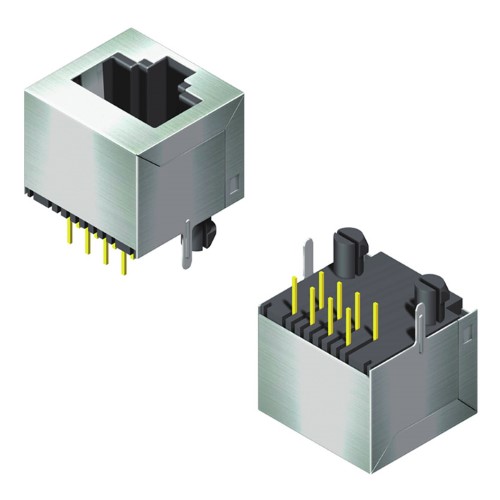

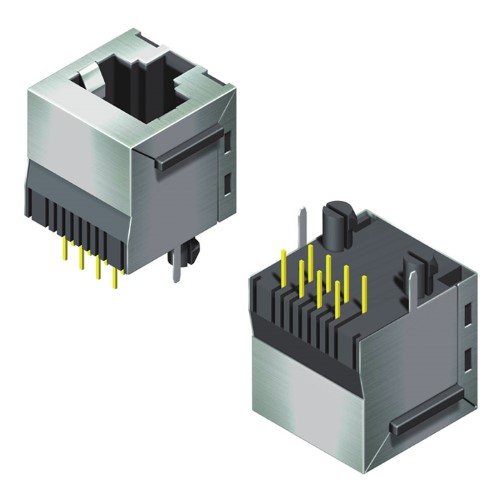

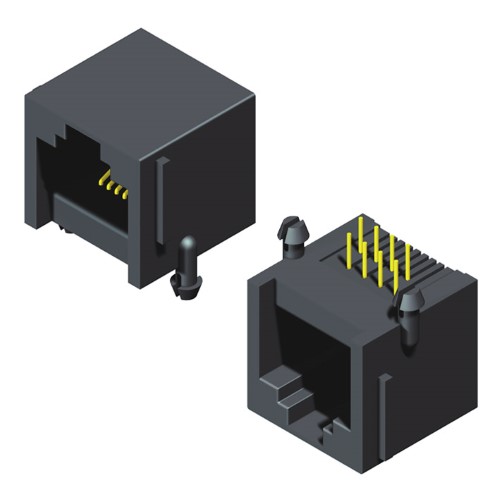

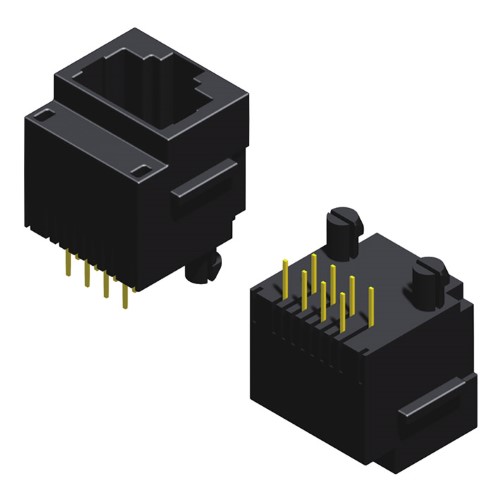

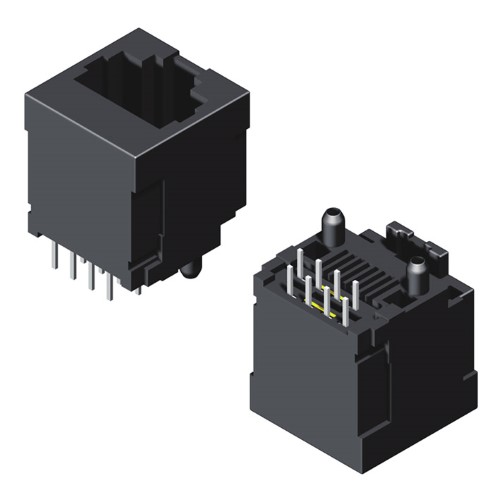

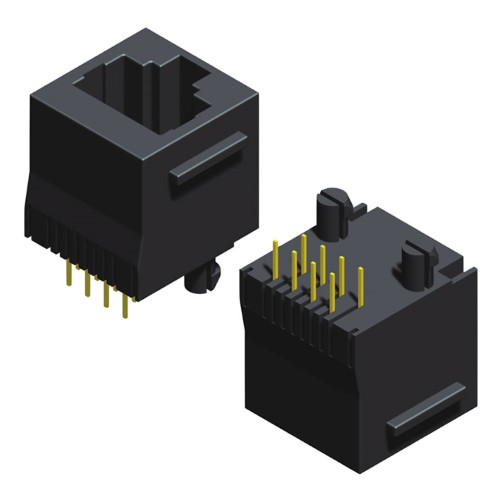

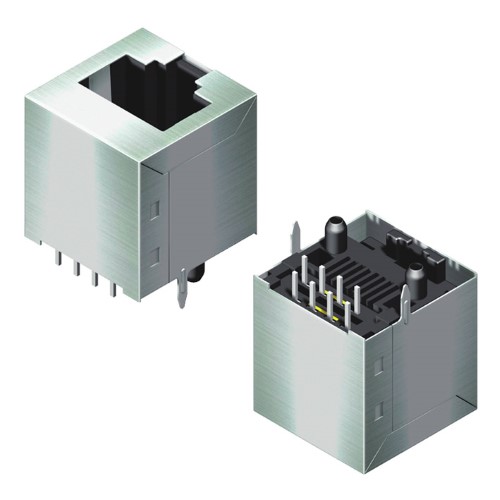

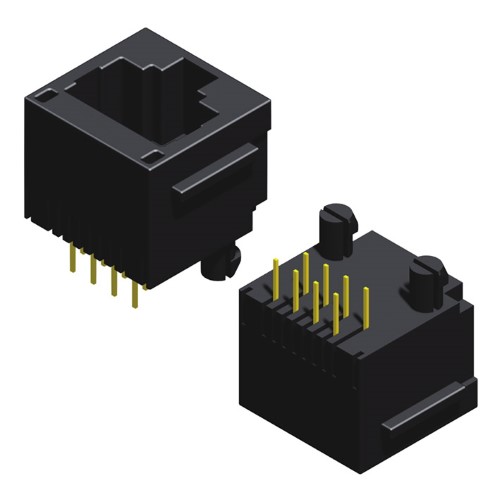

1. Top Entry, Vertical Mount, 180°: The face of the RJ45 Jack Socket is vertical to the PC Board.

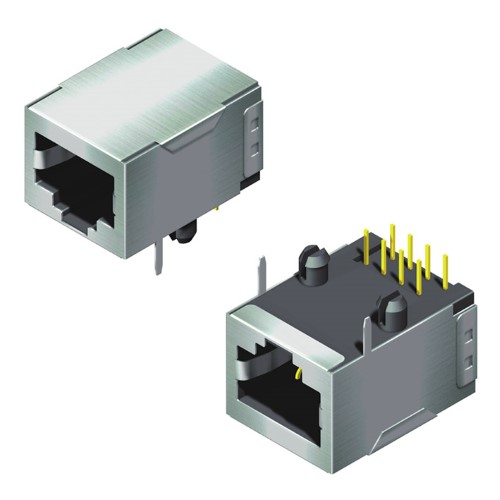

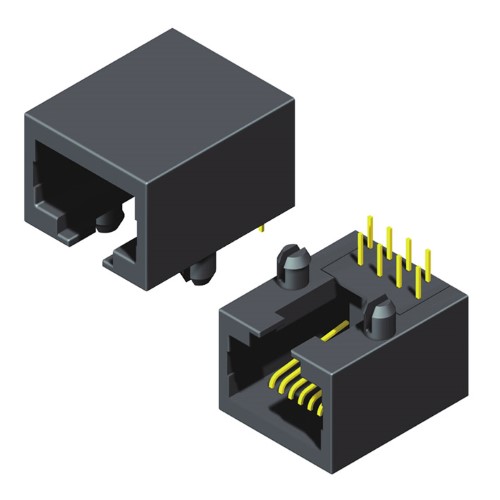

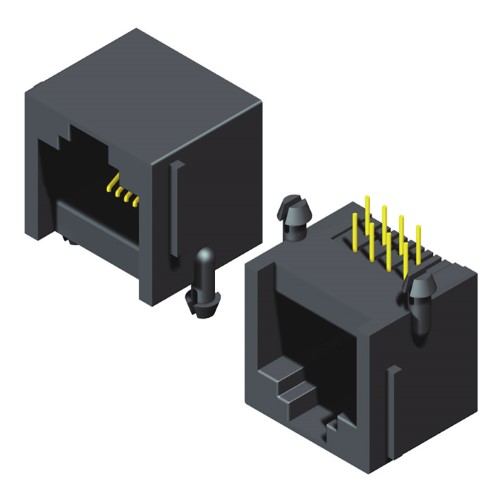

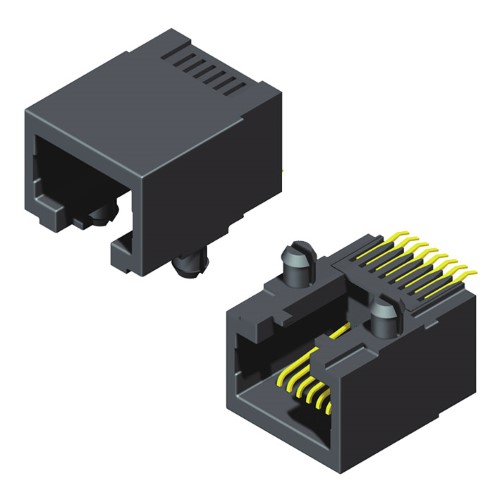

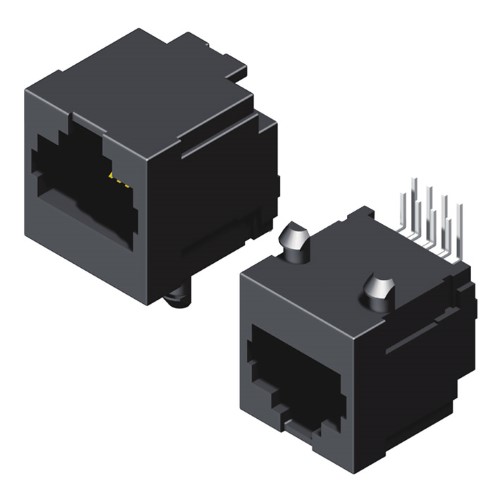

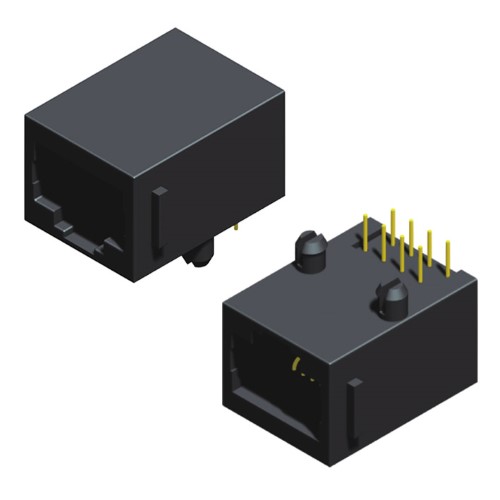

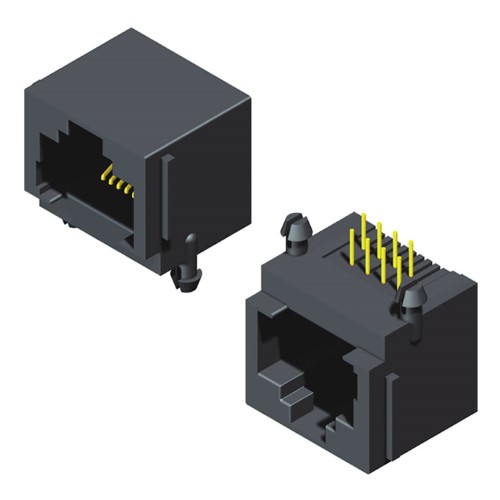

2. Right Angle, Horizontal Mount, 90°: The Jack sits vertically on the PC Board, with the Entry Orientation parallel to the PC Board.

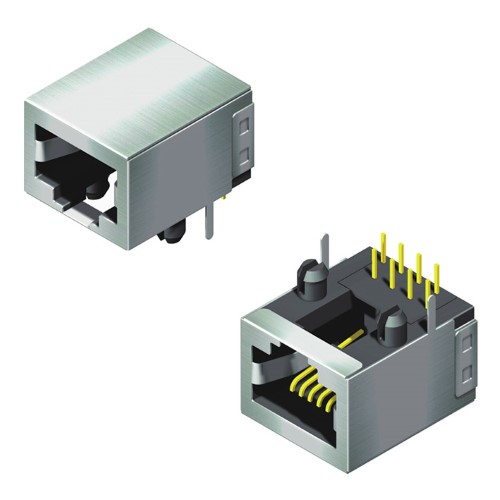

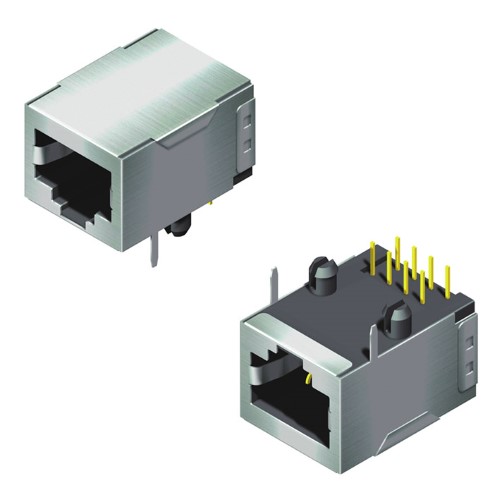

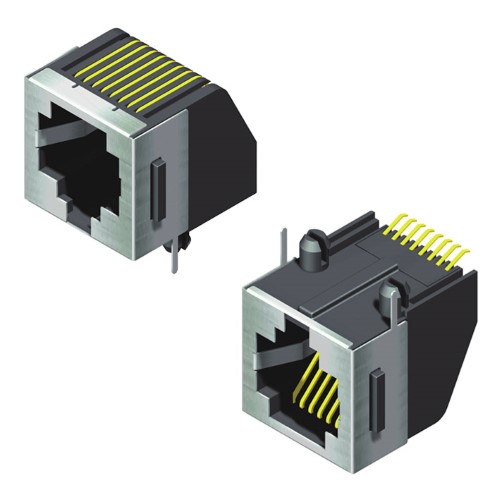

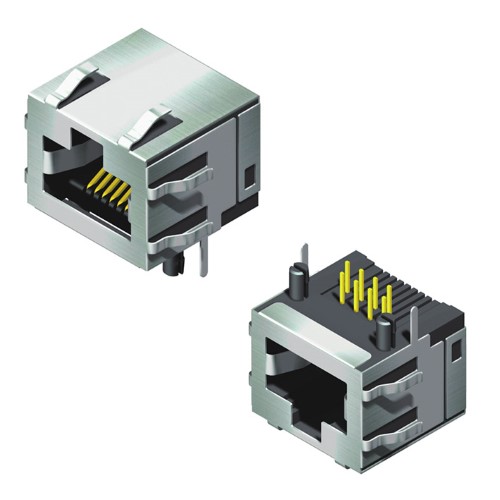

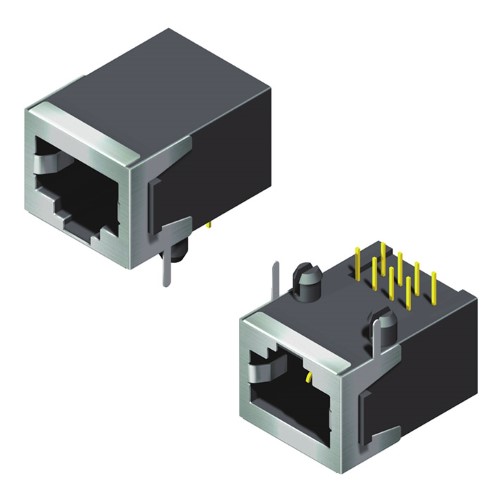

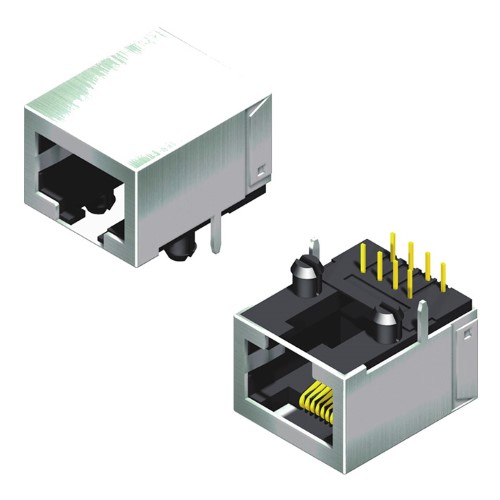

Shielded & Unshielded Options: Shielding provides mechanical protection and more effective grounding for the modular jack.
Solder Tail Types:
1. Through Hole

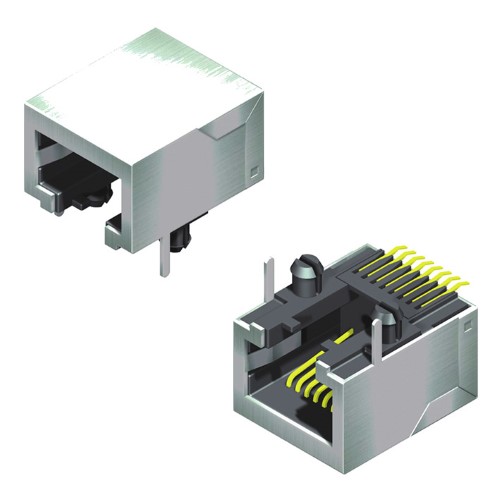

2. SMT (Surface Mount)

For reference only. Please contact us for more details.

Featured Products:

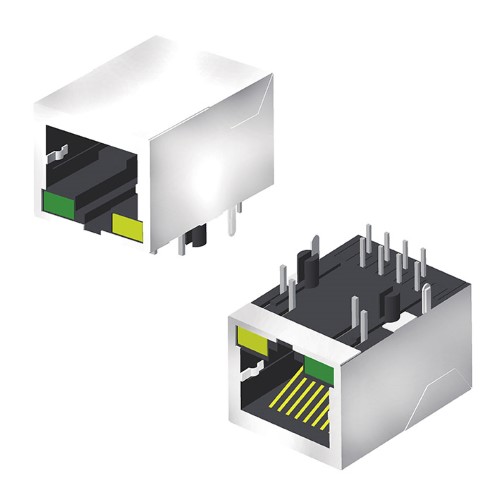

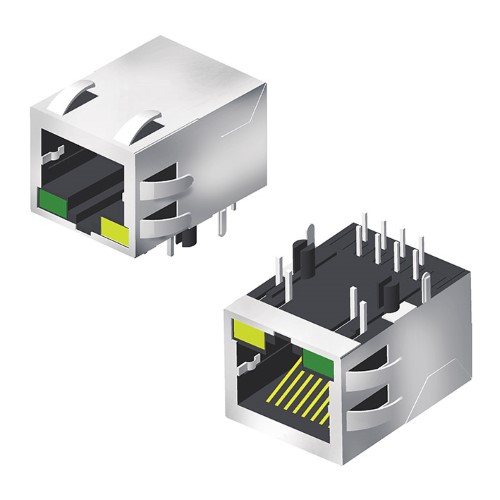

5RT2DR21R2N-88XXP3L-001-E1

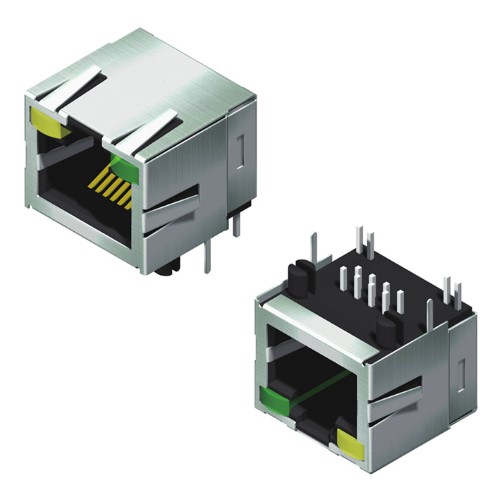

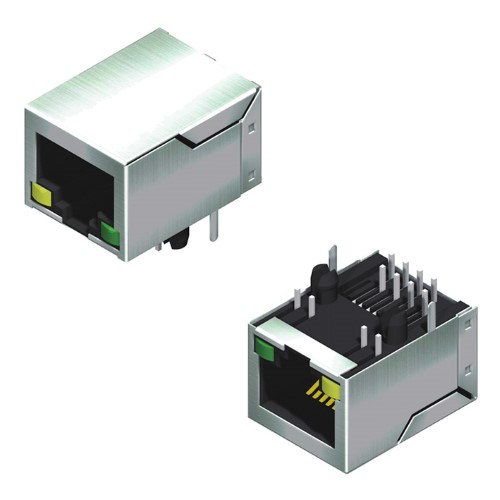

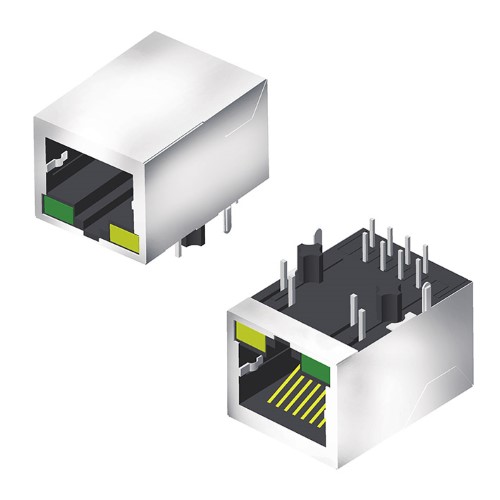

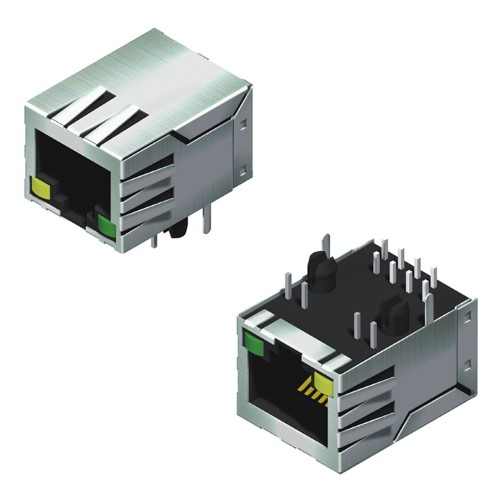

Modular Jack Shielded Side Entry With LED H=13.5 W=21.35 001 Series

Modular Jack Single Port RJ45 Type 8P8C, THT PCB Jack Side Entry Shielded with LED. Available with various contact plating options and in standard or low profile. Panel stop option included.

Specification:

Complies with IEEE standards and all 10/100 Ethernet specifications, including 350µH with 8mA DC bias.
Integrated mag-modular design provides higher reliability and conserves PCB space.
Available with different LED color options.
Operating temperature: 0°C to +70°C.
Storage temperature: -40°C to +85°C.
Lead-free process, RoHS compliant.

Material:

Housing: Thermoplastic PBT + 30% GF, UL94V-0 rated.
Contact: Phosphor Bronze (C5191), gold plated.
Input Terminal: Brass (C2680).
Metal Shielding: Copper alloy with nickel plating (C2680).
